FP6187

Production

300mA Low Noise High PSRR LDO Regulator

Introduction



The FP6187 is a low dropout, low noise, high PSRR, low quiescent current positive linear regulator. The FP6187 can supply 300mA output current with low dropout voltage at about 160mV that optimized for battery-powered systems or portable wireless devices such as mobile phones. The shutdown function can provide remote control for the external signal to decide the on/off state of FP6187 that consumes less than 0.1µA during shutdown mode.

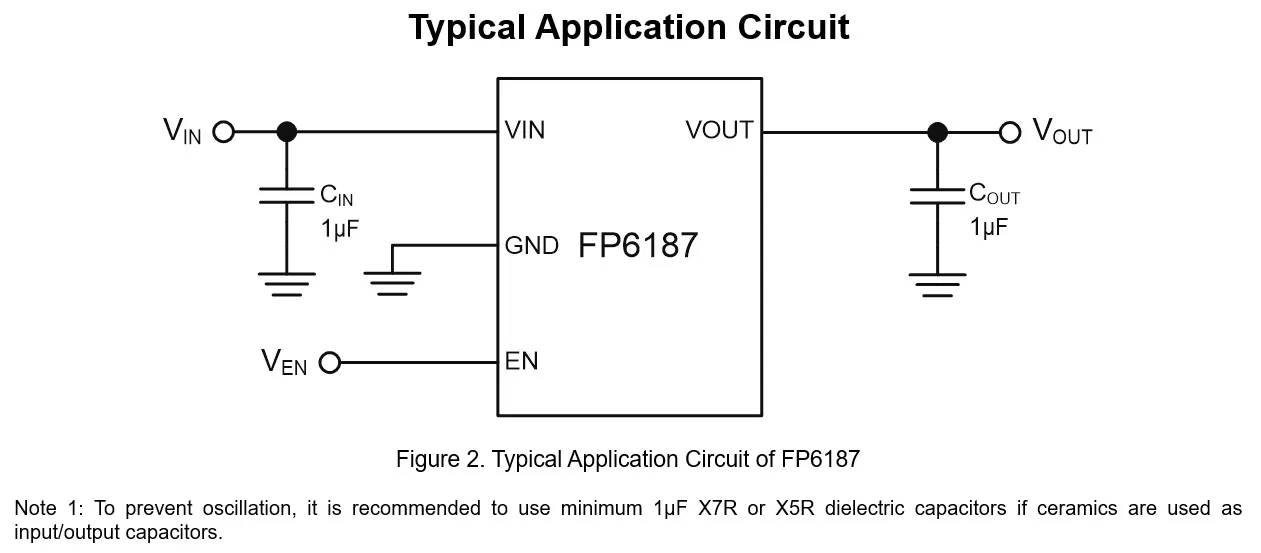

The FP6187 regulator is able to operate with output capacitors as small as 1µF for stability. The FP6187 fault protection includes the current limit protection and current foldback protection.

The FP6187 offers high precision output voltage of ±1%.The FP6187 is available in UTDFN-4L (1.0mm×1.0mm) and SOT-23-5 packages which features small size.

Feature
      • Low VIN and Wide VIN Range: 1.75V to 5.5V
      • Output Current 300mA*1
      • ±1% Output Voltage Accuracy
      • Output Noise 65μVrms from 10Hz to 100kHz
      • VOUT Fixed 1.0V to 3.3V
      • Low Dropout Voltage of 160mV at 2.8V/300mA
      • Ripple Rejection 65dB at 1kHz
      • Low Quiescent Current at 2µA
      • Needs Only 1µF Capacitor for Stability
      • Thermal Shutdown Protection
      • Current Limit Protection
      • Current Foldback Protection
      • Output Discharge Function
      • UTDFN-4L (1.0mm×1.0mm) and SOT-23-5 Packages
      • RoHS Compliant

        *1 Attention should be paid to the power dissipation of the package when the output current is large
Package & Pins
Purchase
Part Name Package Request
FP6187-xxS5 SOT-23-5

Sample Request

Technical Support

FP6187-xxX6 UTDFN-4L (1.0mmx1.0mm)

Sample Request

Technical Support

Documents
Title File Release Date
FP6187-300mA Low Noise High PSRR LDO Regulator 2024/09/19
