FP6861C

Production

Single-Channel Power Distribution Switch

Applications

顯示器
ADSL/VDSL
集線器
機頂盒
數位(智能)電視
纜線數據機
產品說明



The FP6861C is a cost-effective, low voltage, single N-Channel MOSFET high-side power switch, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. The FP6861C is equipped with a charge pump circuitry to drive the internal MOSFET switch. The switch's low RDS(ON) meets USB voltage drop requirement, and a flag output is available to indicate fault conditions to the local USB controller. Additional features include soft-start to limit inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, and Under-Voltage Lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present. Besides, fault current is limited to specific current for FP6861C in single port in accordance with the USB power requirements. FP6861C will prevent reverse current when it is disabled and VOUT is higher than VIN. The FP6861C is available in MSOP-8, SOP-8 and SOT-23-5 packages with smallest components.

特性
  • Compliant to USB Specifications
  • Bilt-In Low RDS(ON) N-Channel MOSFET
  • Output can be Forced Higher than Input (Off-State)
  • Low Supply Current:
    • 55μA Typical at Switch On State
    • 0.1μA Typical at Switch Off State
  • Wide Input Voltage Ranges: 2.7V to 5.5V
  • Open-Drain Fault Flag Output
  • Hot Plug-In Application (Soft-Start)
  • 2.2V Typical Under-Voltage Lockout (UVLO)
  • Current Limit Protection
  • Thermal Shutdown Protection
  • Reverse Current Flow Blocking (No Body Diode)
  • Logic Level Enable Pin
  • MSOP-8, SOP-8 and SOT-23-5 Packages
  • RoHS Compliant
  • UL NO.E322418 (Approved model: FP6861 series)
  • CB Test Certified, Ref. Certif. No. JPTUV-101402

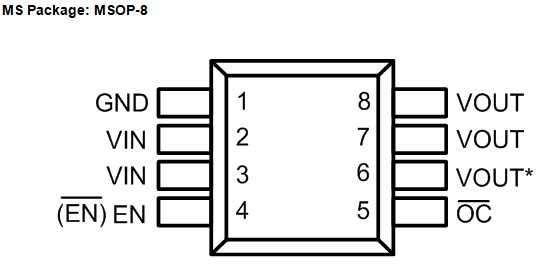

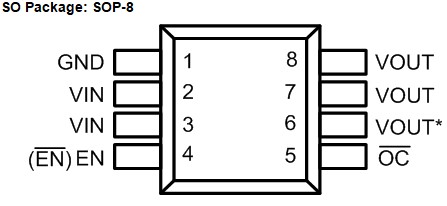

封裝和引腳定義
訂購信息
Part Name Package Request
FP6861C-xxMSCTR MSOP-8

Sample Request

Technical Support

FP6861C-xxSOCTR SOP-8

Sample Request

Technical Support

FP6861C-xxAS5CTR SOT-23-5

Sample Request

Technical Support

技術文檔
Title File Release Date
FP6861C-Single-Channel Power Distribution Switch 2023/01/13
