FP6395
Production
High Efficiency 1.5MHz 1.2A Synchronous Step Down LED Driver
Applications
筆電相機模組
產品說明
The FP6395 is a high efficiency, high frequency synchronous DC-DC step-down LED driver. The 100% duty cycle feature provides low dropout operation, extending battery life in portable systems.
The internal synchronous switch increases efficiency and eliminates the need for external Schottky diode. At shutdown mode, the input supply current is less than 1µA.
The FP6395 fault protection includes over current protection, short circuit protection, UVLO, input over voltage protection and thermal shutdown.
The FP6395 is offered in TDFN-6 (1.6mm×1.6mm) TDFN-6 (2mm×2mm) and SOT-23-5 Packages.
特性
- 2.5V~5.7V Input Voltage Range
- 0.2V Reference Voltage
- 1.2A Output Current
- Low RDS(ON) for Internal Switch (Top/Bottom):
340mΩ/210mΩ - 1.5MHz Switching Frequency
- Internal Compensation Function
- 1kHz ±10% PWM Dimming Control
- 100% Dropout Operation
- Input Over Voltage Protection
- Over Current Protection
- Over Temperature Protection with Auto Recovery
- RoHS Compliant and Halogen Free
- TSCA (USA) Compliant

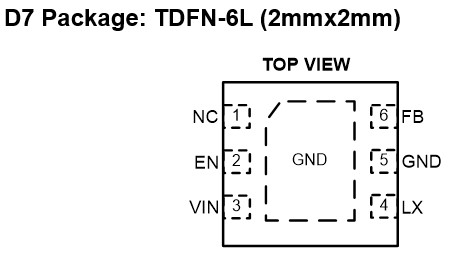

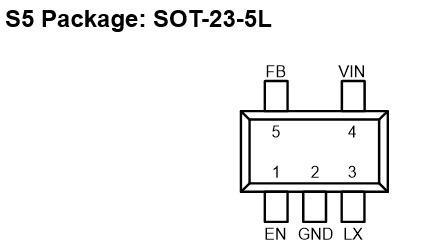

封裝和引腳定義
.jpg)
.jpg)
訂購信息
| Part Name | Package | Request | |
|---|---|---|---|
| FP6395D2 | TDFN-6 (1.6mmx1.6mm) |
|
|
| FP6395D7 | TDFN-6 (2mmx2mm) |
|
|
| FP6395S5 | SOT-23-5 |
|
|
