FP5501
Production
Low-saturation, Low-voltage 2 Channels
Bi-directional Motor Driver
產品說明
%20DC%20Motor%20Application_autoxauto.webp)

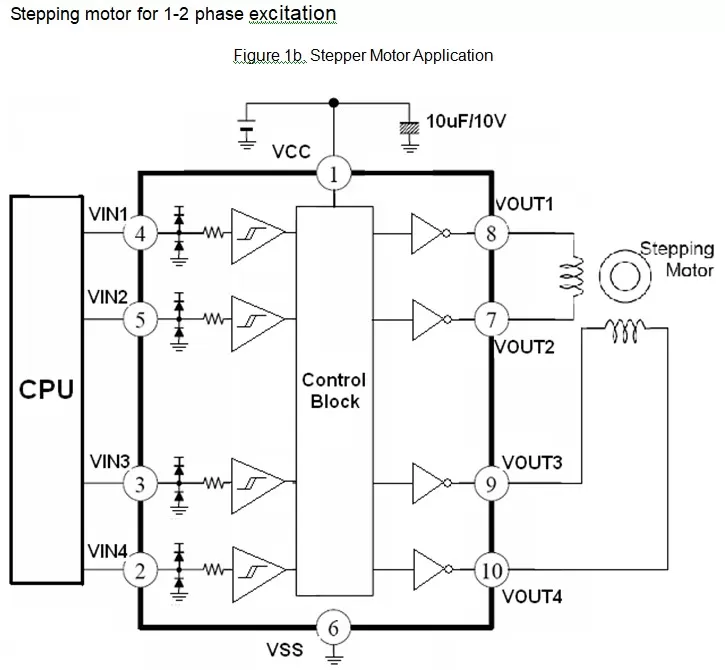

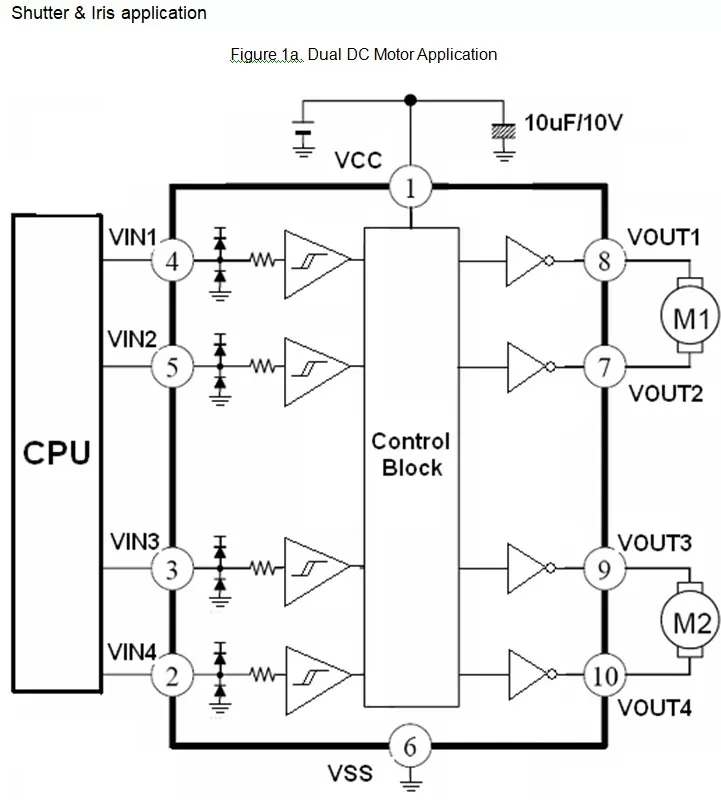

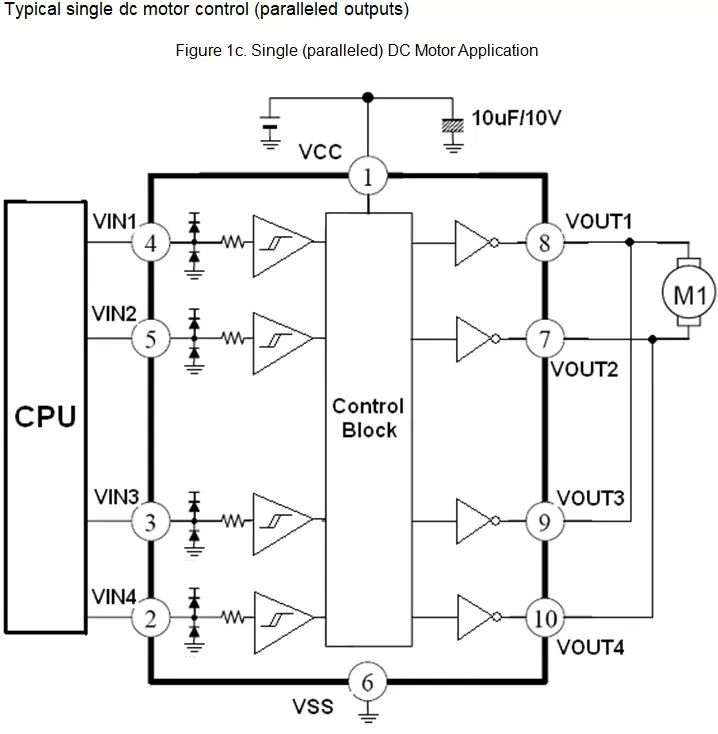

The FP5501 is a monolithic IC for low-saturation bi-directional low cost and high efficiency miniature two DC motor or stepper motor applications, such as driving shutter (DC actuator), auto-focus (stepper motor), iris (stepper motor) and accurate zoom (stepper motor) on cameras, vibration on mobile phone and other motor applications on portable devices.
特性
- Low Voltage Operation (VCC Min=1.8V)
- Full- and Half-Stepping Capability
- Low Saturation Voltage (Upper + Low Transistor Residual Voltage; 0.46V typ. at 400mA)
- Low Input Current
- Low Operating Current, Sleep Mode with Zero Current Drain
- Dead-Zone Protection
- High Output Sinking and Driving Capability
- Small, Thin, Highly Reliable Package (TDFN-10)
- Available COB Package
- Thermal Shutdown Protection

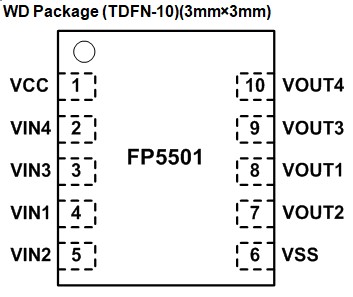

封裝和引腳定義
(3mm%C3%973mm).jpg)
訂購信息
| Part Name | Package | Request | |
|---|---|---|---|
| FP5501WDPTR | WD Package (TDFN-10)(3mm×3mm) |
|
|
