FP6186A
Production
600mA Low Noise LDO with Adjustable Output Function
Applications
網路連網攝影機
產品說明
The FP6186A is a family of CMOS low dropout (LDO) regulators with a low dropout voltage of 400mV at 600mA designed for noise-sensitive portable device, RF and wireless applications. Quiescent current of FP6186A is as low as 60μA and it works with low-ESR ceramic capacitors, which makes it very suitable for space sensitive handheld applications. The soft-start function will eliminate current surges during start-up and the output discharge function will dissipate the residue output voltage in the capacitor during shut-down.
Other features include current limit, thermal protection, high output accuracy, and low noise output etc..
The FP6186A is available in a SOT-23-5 package.
特性
- Low VIN and Wide VIN Range: 1.7V to 5.5V
- Adjustable Output Voltage Range is from 0.8V to 5V, VOUT Accuracy ±1.25%
- 600mA Output Current
- Ripple Rejection 75dB at 1kHz
- Low Output Noise, 50μVrms from 10Hz to 100kHz
- Quiescent Current as Low as 60μA
- Current Limit Protection
- Thermal Shutdown Protection
- 1µF Output Capacitor Required for Stability
- RoHS Compliant

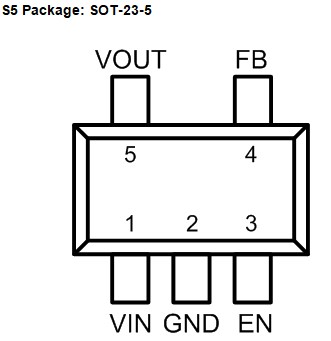

封裝和引腳定義
訂購信息
| Part Name | Package | Request | |
|---|---|---|---|
| FP6186AS5 | SOT-23-5 |
|
|
