FP5532
Production
Low-Voltage H-Bridge Motor Driver

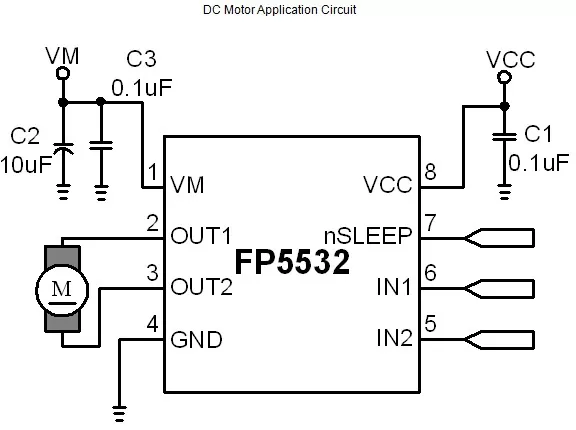

Applications
電動牙刷
產品說明
The FP5532 provides a low-voltage H-bridge motor driver for driving brush motors, solenoids, electrical toothbrush, smart lock, gaming machines or other inductive loads.
The FP5532 fault protection includes over current limit, UVLO and thermal shutdown. In sleep mode, the supply current is about 120nA. The output can supply up to 1.8A of output current, It operates on a motor power supply voltage from 0V to 11V, and a logic power supply voltage of 1.8V to 6V.
The FP5532 has a PWM (IN1-IN2) input interface that compatible with industry-standard devices.
The FP5532 is offered in SOP-8 and TDFN-8L (2mmx2mm) packages.
特性
- ow-Voltage H-Bridge Current Control Driver DC Motors
- Low RDS(ON) Integrated Power MOSFET HS+LS: 280mΩ
- Output Current Capability (At VM = 5V, VCC=3V, 25℃)
-1.8 A Peak Current - Wide Input Voltage Range: 0V to 11V
- Low current in sleep mode: 120nA
- Input Under Voltage Lockout
- Over-Temperature Protection with Auto Recovery
- Small packages
- SOP-8
- TDFN-8L

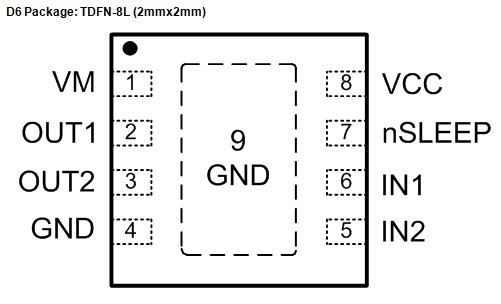

封裝和引腳定義
.jpg)
訂購信息
| Part Name | Package | Request | |
|---|---|---|---|
| FP5532SO | SOP-8 |
|
|
| FP5532D6 | TDFN-8L |
|
|
