FP6359
Production
High Efficiency 1MHz Synchronous Step Down DC/DC Converter
產品說明
The FP6359 is a high efficiency, 1MHz switching frequency and pulse width modulation (PWM) synchronous DC-DC step-down converter that provides wide 2.7V to 6V input voltage range and 3A peak load current capability. The 100% duty cycle feature provides low dropout operation, extending battery life in portable systems.
The internal synchronous switch increases efficiency and eliminates the need for external schottky diode. At shutdown mode, the input supply current is less than 1µA.
The current limit protection and on-chip thermal shutdown features provide protection against any combination of overload or ambient temperature.
特性
- Low RDS(ON) for Internal Switch (Top/Bottom): 95/75mΩ
- 2.7V-6V Input Voltage Range
- 3A Peak Load Current Capability
- Adjustable Output Voltage Down to 0.6V
- 1MHz Switching Frequency
- Internal Compensation Function
- Internal Soft-Start Limits the Inrush Current
- 100% Dropout Operation
- Input Under Voltage Lockout
- Power Good Indicator Output
- Cycle-by-Cycle Current Limit
- Over-Temperature Protection with Auto Recovery
- RoHS Compliant and Halogen Free
- Compact Package: SOT-23-6

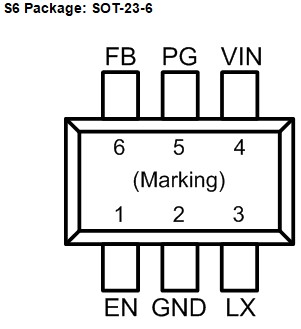

封裝和引腳定義
.jpg)
訂購信息
| Part Name | Package | Request | |
|---|---|---|---|
| FP6359S6 | SOT-23-6 |
|
|
